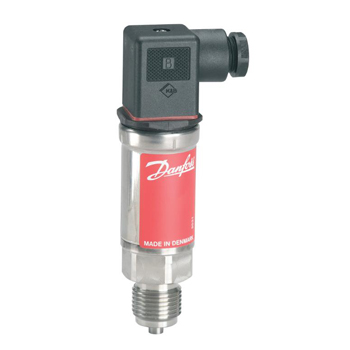

MBS 32 Pressure Transmitters with Voltage Output
Danfoss MBS 32 pressure transmitters are designed for use in almost all industrial applications, and offers a reliable pressure measurement, even under harsh environmental conditions.
The flexible pressure transmitter programme covers all standard voltage outputs, absolute and gauge (relative) versions, measuring ranges from 0-1 to 0-600 bar and a wide range of pressure and electrical connections.
Excellent vibration stability, robust construction, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.
• 0-5 V, 1-5 V, 1-6 V or 0-10 V output signals
• Voltage: 15-30 VDC
• Operating temperature -40 to 85 °C
• Measuring range 0 - 600 bar
• A wide range of pressure connections available
• For use in severe industrial environments
-
Excl. UK VAT: £300.39 Incl. UK VAT: £360.47Pressure Range: 0 to 1 bar
Learn More
Output Signal: 0 - 10V
Voltage: 15-30 VDC
Electrical Connection: DIN 43650-A, PLUG PG9
Pressure Connection: G1/2 EN 837
Pressure Reference: Gauge Relative
Medium Temperature Range: -40 to 85°C
Specification key: MBS 32-1015-1AB08 -
Excl. UK VAT: £300.39 Incl. UK VAT: £360.47Pressure Range: 0 to 1.6 bar
Learn More
Output Signal: 0 - 10V
Voltage: 15-30 VDC
Electrical Connection: DIN 43650-A, PLUG PG9
Pressure Connection: G1/2 EN 837
Pressure Reference: Gauge Relative
Medium Temperature Range: -40 to 85°C
Specification key: MBS 32-1215-1AB08 -
Excl. UK VAT: £300.39 Incl. UK VAT: £360.47Pressure Range: 0 to 2.5 bar
Learn More
Output Signal: 0 - 10V
Voltage: 15-30 VDC
Electrical Connection: DIN 43650-A, PLUG PG9
Pressure Connection: G1/2 EN 837
Pressure Reference: Gauge Relative
Medium Temperature Range: -40 to 85°C
Specification key: MBS 32-1415-1AB08 -
Excl. UK VAT: £289.54 Incl. UK VAT: £347.45Pressure Range: 0 to 4 bar
Learn More
Output Signal: 0 - 10V
Voltage: 15-30 VDC
Electrical Connection: DIN 43650-A, PLUG PG9
Pressure Connection: G1/2 EN 837
Pressure Reference: Gauge Relative
Medium Temperature Range: -40 to 85°C
Specification key: MBS 32-1615-1AB08 -
Excl. UK VAT: £289.54 Incl. UK VAT: £347.45Pressure Range: 0 to 6 bar
Learn More
Output Signal: 0 - 10V
Voltage: 15-30 VDC
Electrical Connection: DIN 43650-A, PLUG PG9
Pressure Connection: G1/2 EN 837
Pressure Reference: Gauge Relative
Medium Temperature Range: -40 to 85°C
Specification key: MBS 32-1815-1AB08 -
Excl. UK VAT: £289.54 Incl. UK VAT: £347.45Pressure Range: 0 to 16 bar
Learn More
Output Signal: 0 - 10V
Voltage: 15-30 VDC
Electrical Connection: DIN 43650-A, PLUG PG9
Pressure Connection: G1/2 EN 837
Pressure Reference: Gauge Relative
Medium Temperature Range: -40 to 85°C
Specification key: MBS 32-2215-1AB08 -
Excl. UK VAT: £289.54 Incl. UK VAT: £347.45Pressure Range: 0 to 25 bar
Learn More
Output Signal: 0 - 10V
Voltage: 15-30 VDC
Electrical Connection: DIN 43650-A, PLUG PG9
Pressure Connection: G1/2 EN 837
Pressure Reference: Gauge Relative
Medium Temperature Range: -40 to 85°C
Specification key: MBS 32-2415-1AB08 -
Excl. UK VAT: £289.54 Incl. UK VAT: £347.45Pressure Range: 0 to 40 bar
Learn More
Output Signal: 0 - 10V
Voltage: 15-30 VDC
Electrical Connection: DIN 43650-A, PLUG PG9
Pressure Connection: G1/2 EN 837
Pressure Reference: Gauge Relative
Medium Temperature Range: -40 to 85°C
Specification key: MBS 32-2615-1AB08 -
Excl. UK VAT: £289.54 Incl. UK VAT: £347.45Pressure Range: 0 to 60 bar
Learn More
Output Signal: 0 - 10V
Voltage: 15-30 VDC
Electrical Connection: DIN 43650-A, PLUG PG9
Pressure Connection: G1/2 EN 837
Pressure Reference: Gauge Relative
Medium Temperature Range: -40 to 85°C
Specification key: MBS 32-2815-1AB08 -
Excl. UK VAT: £289.54 Incl. UK VAT: £347.45Pressure Range: 0 to 100 bar
Learn More
Output Signal: 0 - 10V
Voltage: 15-30 VDC
Electrical Connection: DIN 43650-A, PLUG PG9
Pressure Connection: G1/2 EN 837
Pressure Reference: Gauge Relative
Medium Temperature Range: -40 to 85°C
Specification key: MBS 32-3015-1AB08 -
Excl. UK VAT: £289.54 Incl. UK VAT: £347.45Pressure Range: 0 to 160 bar
Learn More
Output Signal: 0 - 10V
Voltage: 15-30 VDC
Electrical Connection: DIN 43650-A, PLUG PG9
Pressure Connection: G1/2 EN 837
Pressure Reference: Gauge Relative
Medium Temperature Range: -40 to 85°C
Specification key: MBS 32-3215-1AB08 -
Excl. UK VAT: £289.54 Incl. UK VAT: £347.45Pressure Range: 0 to 250 bar
Learn More
Output Signal: 0 - 10V
Voltage: 15-30 VDC
Electrical Connection: DIN 43650-A, PLUG PG9
Pressure Connection: G1/2 EN 837
Pressure Reference: Gauge Relative
Medium Temperature Range: -40 to 85°C
Specification key: MBS 32-3415-1AB08 -
Excl. UK VAT: £289.54 Incl. UK VAT: £347.45Pressure Range: 0 to 600 bar
Learn More
Output Signal: 0 - 10V
Voltage: 15-30 VDC
Electrical Connection: DIN 43650-A, PLUG PG9
Pressure Connection: G1/2 EN 837
Pressure Reference: Gauge Relative
Medium Temperature Range: -40 to 85°C
Specification key: MBS 32-3815-1AB08 -
Excl. UK VAT: £289.54 Incl. UK VAT: £347.45Pressure Range: 0 to 1 bar
Learn More
Output Signal: 0 - 10V
Voltage: 15-30 VDC
Electrical Connection: DIN 43650-A, PLUG PG9
Pressure Connection: G1/2 EN 837
Pressure Reference: Absolute
Medium Temperature Range: -40 to 85°C
Specification key: MBS 32-1025-1AB08 -
Excl. UK VAT: £289.54 Incl. UK VAT: £347.45Pressure Range: 0 to 4 bar
Learn More
Output Signal: 0 - 10V
Voltage: 15-30 VDC
Electrical Connection: DIN 43650-A, PLUG PG9
Pressure Connection: G1/2 EN 837
Pressure Reference: Absolute
Medium Temperature Range: -40 to 85°C
Specification key: MBS 32-1625-1AB08 -
Excl. UK VAT: £289.54 Incl. UK VAT: £347.45Pressure Range: 0 to 6 bar
Learn More
Output Signal: 0 - 10V
Voltage: 15-30 VDC
Electrical Connection: DIN 43650-A, PLUG PG9
Pressure Connection: G1/2 EN 837
Pressure Reference: Absolute
Medium Temperature Range: -40 to 85°C
Specification key: MBS 32-1825-1AB08 -
Excl. UK VAT: £289.54 Incl. UK VAT: £347.45Pressure Range: 0 to 10 bar
Learn More
Output Signal: 0 - 10V
Voltage: 15-30 VDC
Electrical Connection: DIN 43650-A, PLUG PG9
Pressure Connection: G1/2 EN 837
Pressure Reference: Absolute
Medium Temperature Range: -40 to 85°C
Specification key: MBS 32-2025-1AB08 -
Excl. UK VAT: £289.54 Incl. UK VAT: £347.45Pressure Range: 0 to 16 bar
Learn More
Output Signal: 0 - 10V
Voltage: 15-30 VDC
Electrical Connection: DIN 43650-A, PLUG PG9
Pressure Connection: G1/2 EN 837
Pressure Reference: Absolute
Medium Temperature Range: -40 to 85°C
Specification key: MBS 32-2225-1AB08 -
Excl. UK VAT: £289.54 Incl. UK VAT: £347.45Pressure Range: 0 to 25 bar
Learn More
Output Signal: 0 - 10V
Voltage: 15-30 VDC
Electrical Connection: DIN 43650-A, PLUG PG9
Pressure Connection: G1/2 EN 837
Pressure Reference: Absolute
Medium Temperature Range: -40 to 85°C
Specification key: MBS 32-2425-1AB08 -
Excl. UK VAT: £289.54 Incl. UK VAT: £347.45Pressure Range: 0 to 10 bar
Learn More
Output Signal: 0 - 10V
Voltage: 15-30 VDC
Electrical Connection: DIN 43650-A, PLUG PG9
Pressure Connection: G1/2 EN 837
Pressure Reference: Gauge Relative
Medium Temperature Range: -40 to 85°C
Specification key: MBS 32-2015-1AB08 -
Excl. UK VAT: £361.92 Incl. UK VAT: £434.30Pressure Range: 0 to 400 bar ATEX Ex nA IIA T3 Gc
Learn More
Output Signal: 1 - 5V
Voltage: 10,00 - 30,00 VDC
Electrical Connection: Pg 9, EN 175301-803-A, Male and Female
Pressure Connection: G1/2 EN 837
Pressure Reference: Gauge (relative)
Medium Temperature Range: -40 to 85°C
Specification key: MBS 32-3613-1AB08
