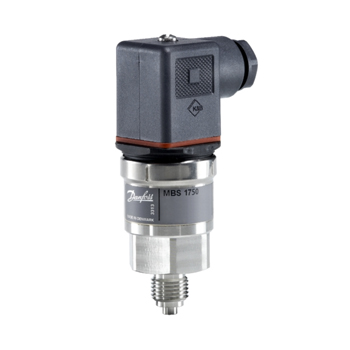

MBS 1750 Pressure Transmitters with Pulse Snubber for General Purpose

Danfoss pressure transmitter, type MBS 1750 is designed to a variety of applications and easy to install especially where cavitation, liquid hammer or pressure peaks can occur. The transmitter offers highly reliable pressure measurement, ensuring that even the slightest change is detected immediately.
• 4 – 20 mA output signal
• Measuring range 0 to 400 bar
• Pressure connection G1/4 DIN 3852-E
• Supply voltage [V] d.c. 9 - 32 V
• Temperature compensated and laser calibrated
• Excellent vibration stability
• Integrated pulse snubber to protect against cavitation, liquid hammer or pressure peaks
• Easy installation – fit and forget
• Supply voltage [V] d.c. 9 - 32 V
