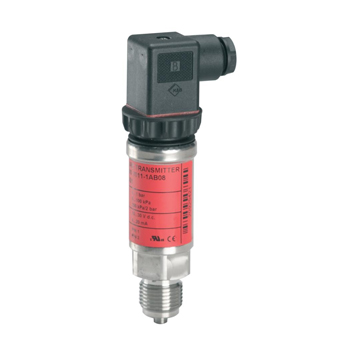

MBS 4500 Pressure Transmitters with Adjustable Zero and Span (low pressure codes)

MBS 4500 Pressure Transmitters with Adjustable Zero and Span (low pressure codes)

The high accuracy Danfoss pressure transmitter MBS 4500 is designed for use in almost all industrial applications, and offers a reliable pressure measurement, even under harsh environmental conditions.
The flexible pressure transmitter programme covers a 4-20 mA output signal, absolute and gauge (relative) versions, measuring ranges from 0-1 to 0-600 bar zero and span adjustment. A rotatable plug connection and a wide range of pressure connections.
Excellent vibration stability, robust construction, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.
• Designed for use in severe industrial environments
• Enslosure and wetted parts of acid-resistant stainless steel (AISI 316L)
• Pressure ranges in relative (gauge) or absolute from 0 up to 600 bar
• Output signal: 4 - 20 mA
• A wide range of pressure connections
• Temperature compensated and laser calibrated
• Accuracy 0,5% FS
• Zero and span adjustments
