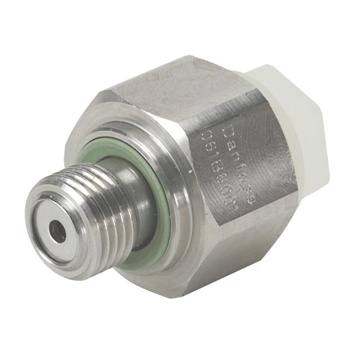

MBV 2000 Test Valves

The Danfoss MBV 2000 isolation valve is designed for mounting between a Danfoss pressure transmitter and fluid-filled systems and offers a fast and efficient method of connection and removal.
The isolation valve automatically closes when a pressure transmitter is removed, so transmitters can be changed easily without having to first drain a system. The valve re-opens when a transmitter is connected.
The valve meets demands for fast installation, simple and effective isolation and easy connection.
• Operating pressure: Up to 600 bar
• Burst pressure: 1500 bar
• Temperature: -20° C to 200° C
• Wetted parts: All metal parts in contact with medium DIN 17440-1.4404 (AISI 316L)
• Gasket: Viton
