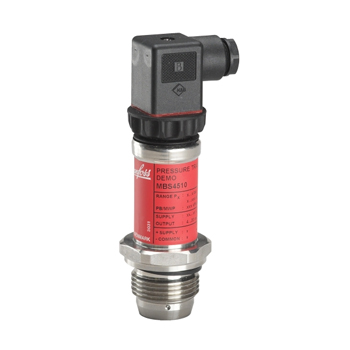

MBS 4510, Pressure Transmitters with Flush Diaphragm (low pressure codes)

The high accuracy flush diaphragm Danfoss pressure transmitter MBS 4510 is designed for use in non-uniform, high viscous or crystallizing media within industry, food and beverage, and offers a reliable pressure measurement, even under harsh environmental conditions.
The pressure transmitter programme covers a 4-20 mA output signal, absolute and gauge (relative) versions, measuring ranges from 0-250 mbar to 0-25 bar, zero point and span adjustment, plug connection and a G1A conic pressure connection with a flush mounted diaphragm.
• Excellent vibration stability, robust construction, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.
• 4 – 20 mA output signal
• Operating temperature -40 to 85° C
• Measuring ranges 0 – 250 mbar to 0 – 25 bar
• Available with many different pressure connections
• With zero point and span adjustment
• With flush diaphragm
• For use in food and beverage industry as well as industrial applications with aggressive, heterogeneous and highly viscous media
